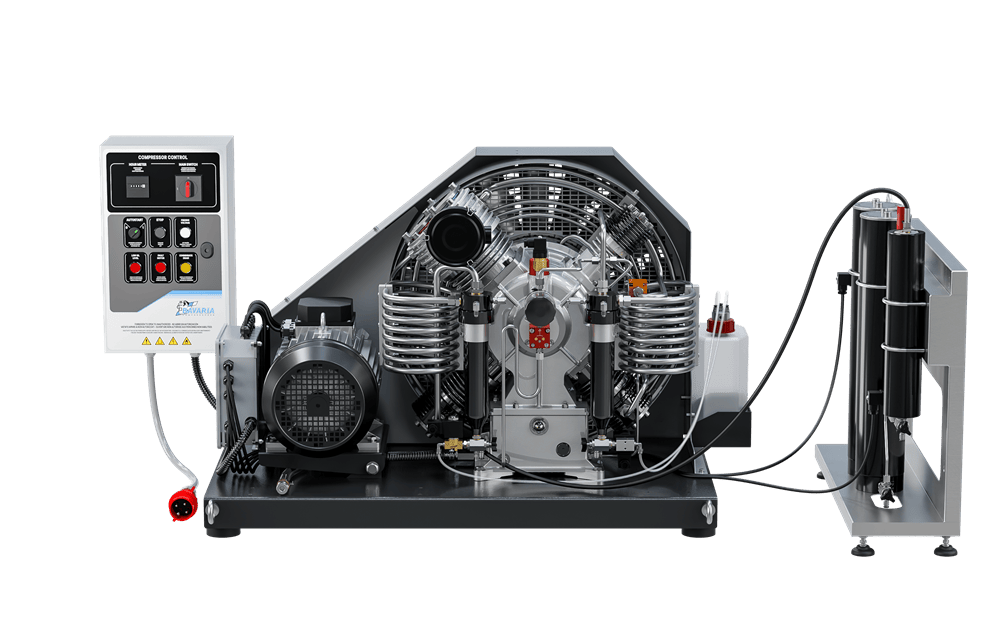

Stationary breathing air compressors

High-performance breathing air compressor and filling system for gases - especially breathing air.
Air flow rate 400 -550 L/min, 24 - 33 m³/h, 14.12 - 19.42 c.f.m. up to max. 360 bar, optional 420 bar.
4-stage heavy-duty industrial standard compressor block, automatic condensate separation and shut-off upon reaching the final pressure.
With maintenance-free low-pressure oil pump with oil filter, oil capacity approx. 5 liters.
Micronic intake air filter,
Supplied filter unit FT 410 three-stage breathing air purification dryer system, TÜV tested, dryer capacity 2400 m³ (at 20° C) for H²O/oil or optionally H²O/oil/CO.
The optional AIRSAVE PRO E or AIRSAVE ULTIMATE can be integrated for air quality monitoring.
HIGH END star-delta compressor control with motor protection relay, start-stop button with indicator light, emergency stop mushroom button, operating hours counter, electronic timer for automatic condensate drainage, precision pressure switch for automatic switch-off when final pressure is reached.
Asynchronous three-phase motor 400 V, 50/60 Hz, 7.5 - 9 kW, IP 55, IE3
1 main air outlet,
Compressor LWH115x 60x 79.6cm
Filter unit 75 x 80 x 30 cm,

For further information see datasheet

BAVARIA TSO Open-Semisilent PROFESSIONAL – made for professionals!
Maximum safety and purest breathing air for fire departments & rescue services – divers & diving centers – industry & shipping. The TSO Open Professional was specially developed for fire departments, rescue services, diving centers, and industrial applications – robust, powerful, and low-maintenance. 24/7 operation – only 83 dB(A), breathing air according to the highest standards.
Air flow: 270 LPM – 320 LPM = 16.2 – 19 m³ – 9.53 – 11.3 CFM
Maximum working pressure: 350 bar
Safety valves for each compression stage, micron intake filter, semi-low-noise, noise-reduced design 83 dB(A)
Dual lubrication using a low-pressure oil pump with a microparticle oil filter and highly efficient centrifugal needle lubrication, oil capacity 2.6 liters.
Micronic intake air filter, intermediate separator after the 2nd and 3rd compressor stages, condensate separation with special silencer, 5-liter collection tank.
FT 410 three-stage breathing air drying system, TÜV-tested, dryer capacity approx. 1400 m³ at 15 °C (UT) for H²O/oil or optional H²O/oil/CO.
Electronic monitoring of dryer saturation with Airsave PRO E, integrated humidity sensor in the filter cartridge.
IDE HIGH END compressor control system, monitoring and regulation of the infinitely variable final pressure, of the infinitely variable restart pressure
Control and monitoring of the automatic condensate drain, control and monitoring of the optional CO2 purging system,
Control and monitoring of the star-delta motor starter, recording of operating hours.
Monitoring of the optional AIRSAVE PRO E breathing air dryer cartridge change interval monitoring with shutdown,
Three-phase asynchronous motor 400 V, 50 Hz, 5.5-7.5 kW, B3 IP 55, conical drive pulley with SPA V-belt.
1 main air outlet 16 x 1.5 8S or optionally external filling panel with 4 x 200 bar or 4 x 300 bar or 2 x 200 + 2 x 300 bar filling devices.
Accessories included:
Wrench for dryer housing, comprehensive operating instructions, spare parts manual, compressor logbook, compressor filling log, declaration of conformity, certificates for safety valves, hoses, separator, dryer, air quality and leak test, dryer cartridge FT 410 A.
Dimensions: LxWxH LxWxH 1100 x 750 x 1320 mm, weight approx. 210-215 kg

For further information see datasheet

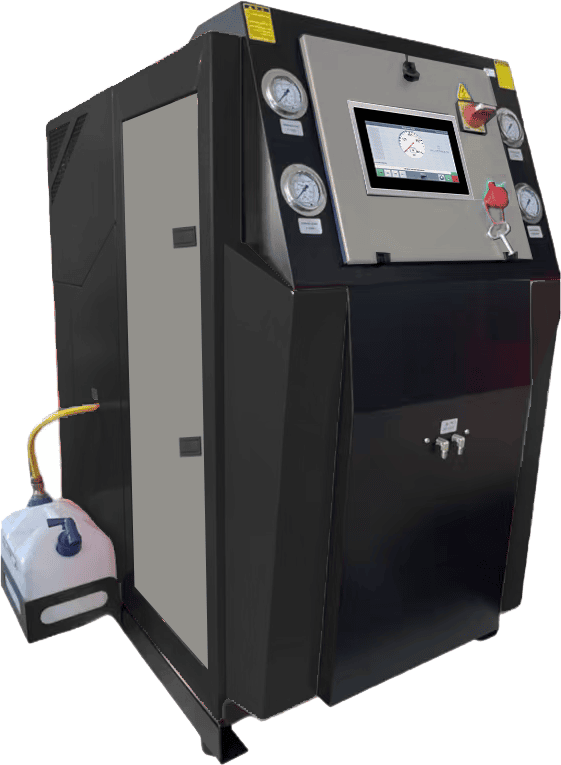

BAVARIA TSI SILENT COMPACT PROFESSIONAL – made for professionals!
When it comes to life and safety, only performance and absolute reliability count. The TSI SILENT Professional was specially developed for fire departments, rescue services, diving centers, and industrial applications – robust, powerful, and low-maintenance. 24/7 operation – Designed for extreme continuous use. Only 69 dB(A).
Air flow: 270 LpM-16 m³-9,53cfm, 320LpM- 19m³- 11,3cfm, 400LpM- 24m³- 14,13cfm, 450LpM- 27m³- 15,9cfm, max.350 bar
Safety valves for each compression stage, micron suction filter, dual lubrication with a low-pressure oil pump featuring a micro-particle oil filter and high-efficiency centrifugal needle lubrication, oil capacity 2.6 liters.
Micronic intake air filter, intermediate separator after the 2nd and 3rd compressor stages, condensate separation with special silencer, 5-liter collection tank.
FT 410 three-stage breathing air drying system, TÜV-tested, dryer capacity approx. 1400 m³ at 15 °C (UT) for H²O/oil or optional H²O/oil/CO.
Electronic monitoring of dryer saturation with Airsave PRO E, integrated humidity sensor in the filter cartridge.
IDE HIGH END compressor control with display.
Three-phase asynchronous motor 400 V, 50 Hz, 5.5-7.5 kW, B3 IP 55, conical drive pulley with SPA V-belt.
1 main air outlet 16 x 1.5 8S or optionally external filling panel with 4 x 200 bar or 4 x 300 bar or 2 x 200 + 2 x 300 bar filling devices.
Accessories included:
Wrench for dryer housing, comprehensive operating instructions, spare parts manual, compressor logbook, compressor filling log, declaration of conformity, certificates for safety valves, hoses, separator, dryer, air quality and leak test, dryer cartridge FT 410 A.
Dimensions: LxWxH 1340 x 750 x 1320 mm, weight approx. 240-245 kg
For further information see datasheet

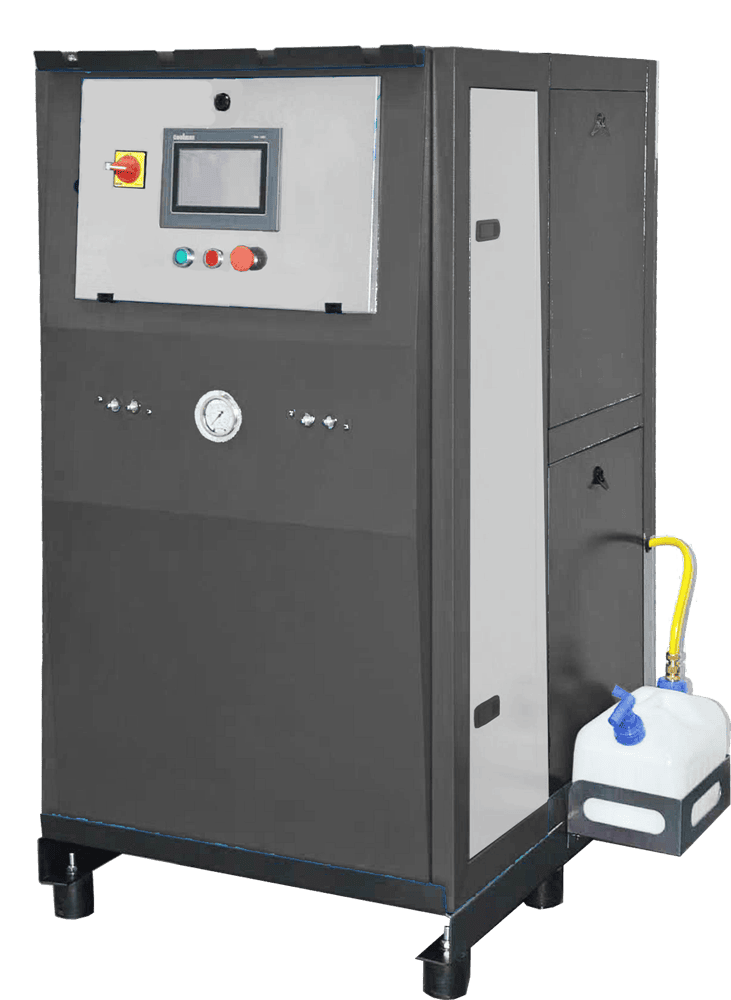

TVCS-SC TVC Silent-SUPER CHARGER
High-performance high-pressure compressor and filling system for gases - especially breathing air in a sound-insulated version (70 dB(A))
Air delivery rate 600 – 700-800 L/min, 36/ 42/ 48 m³/h, 21.19/ 24.72/ 28.75 c.f.m. up to max. 420 bar.
4-cylinder robust industrial-standard compressor block, safety valves after each compression stage. Type-tested and TÜV-approved unloadable final pressure safety valve, automatic condensate separation and shut-off upon reaching the final pressure.
With maintenance-free low-pressure oil pump, oil capacity 6 liters.
Automatic CO2 purging device at compressor start.
Micronic intake air filter, 10-liter condensate collection tank.
FT 410/ 810 three-stage breathing air purification dryer system, TÜV tested, dryer capacity 1400/ 2400 m³ (at 20° C) for H²O/oil or optionally H²O/OIL/CO.
The optional AIRSAVE PRO E or AIRSAVE ULTIMATE can be integrated for air quality monitoring.
IDE HIGH END Star-Delta Compressor Controller with 7″ Color Touch Display,
Three-phase asynchronous motor 400 V, 50 Hz, 11/11/15 kW, IP 55, IE3
1 main air outlet, optionally expandable with up to 4 filling hoses of 1.5 m each with handle and kink protection, and filling valves with venting.
Dryer key, detailed user manual, parts manual, compressor logbook, compressor filling log, declaration of conformity, safety valve certificates, separator, dryer unit, dryer cartridge FT 410.+ 410A
Dimensions: LWH 130 x 85 x 170 cm, weight approx. 450 kg.

For further information see datasheet
